HARGA :
Rp.18,500,000
(** Price are included PPn 10%)

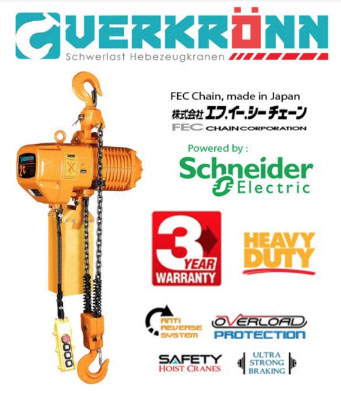

VERKRONN Heavy Duty Electric Chain Hoist, Taiwan (1 Ton)
| TYPE : VCE01-01S | FEATURES |
|---|---|
| Capacity : 1 Ton (Pure Capacity) Lifting Height : 12 Meter Hoisting Speed : 6.6 (m/min) Hoist Motor : 1.5 kW Rotation Speed (r/min) : 1440 Insulation Grade : F Control Voltage : 48Vac (Safe for Human) Power Supply : 380V/50Hz No. of Chain Falls : 1 Load Chain Size : Ø7.1mm Net Weight : 61Kg Pendant : 2 point (U;D) Emergency Stop : Including on P/B |
+ SCHNEIDER Electrification. + Chain Container operation fabricated available for long lift applications. + Heavy Duty Hoist Motor with Cooling Fin + Safe Brake System + Upper and Lower Limit Switch + Inverse Phase Sequence Protecting Device + Load Sheave / Reduce Vibration + Load Chain FEC Ultra head-treatable alloy steel chain, Made in Japan. + Load hook carbon steel with heavy-duty hook latch. + Push Button Control Compact Design, Rated IP55 protection. + Wireless remote control can be assembled. + Warranty : Mechanical 3 Years + Electrical 1 Year + 20 Years Warranty of Original Component Availability |
HARGA :
Rp.33,500,000
(** Price are included PPn 10%)
VERKRONN Heavy Duty Electric Chain Hoist, Taiwan (2 Ton)
| TYPE : VCE02-02S | FEATURES |
|---|---|
| Capacity : 2 Ton (Standart Speed) Lifting Height : 12 Meter Hoist Speed : 3.3 (m/min) Hoist Motor : 1.5 kW Rotation Speed (r/min) : 1440 Insulation Grade : F Control Voltage : 48 V Power Supply : 380 V / 50 Hz No. of Chain : 2 Spec. of Load Chain : Ø7.1 Net Weight : 73Kg Pendant : 2 point (U;D) Emergency Stop : Including on P/B |
+ SCHNEIDER Electrification. + Chain Container operation fabricated available for long lift applications. + Heavy Duty Hoist Motor with Cooling Fin + Safe Brake System + Upper and Lower Limit Switch + Inverse Phase Sequence Protecting Device + Load Sheave / Reduce Vibration + Load Chain FEC Ultra head-treatable alloy steel chain, Made in Japan. + Load hook carbon steel with heavy-duty hook latch. + Push Button Control Compact Design, Rated IP55 protection. + Wireless remote control can be assembled. + Warranty : Mechanical 3 Years + Electrical 1 Year + 20 Years Warranty of Original Component Availability |
HARGA :
Rp.27,500,000,-
(** Price are included PPn 10%)

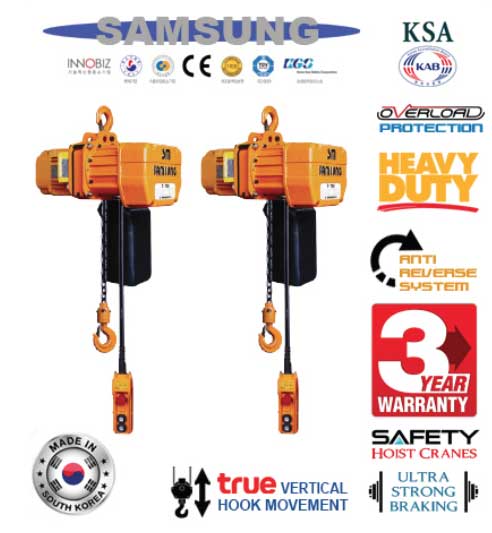

SAMSUNG Heavy Duty Class Electric Chain Hoist – Made in Korea
| Type : SMO-S1000 | FEATURES |
|---|---|
| Capacity : 1 T Lifting Height : 12 m Hoisting Speed : 5.8 m/min Hoisting Motor : 1.25 Kw (TENV type) Power Source : 3 Phase/ 380V/ 50Hz Rating : 30 min Insulation : F Class ( Up To 155oC) Control : Low Voltage AC 48V Load Limiter : OLP (Overload Protector) & Slipping Clutch Thermal limiter : Bimetal Overheating Protection Relay Phase Protector : Failure & Reverse Phase Gear Box : Lubricated Two-Stage Gears of Coaxial Brake System : Magnetic Brake with Non Asbestos Brake Lining. Chain Fall : 1 Fall x Ø7.1mm Index Protection : IP54 ISO Class : M5 Weight : Approx. 58 Kg Pendant : 2 Point (U;D) Emergency Stop : Including on P/B Warranty : 1 Year Electrical ; 3 years mechanical |
– Motors and brakes that boast powerfull and long life – Aluminum alloy frame that minimize weight – Stable & speedy hoisting character – Voltage operation mode that minimizes the human body electric shock – it using a high strength and stability FEC (made in japan) – Deceleration of the structure and durable material benefits – Uniform Production Control system to produce quality |
